Plans, Maps & Track
!
BPLAN
Larger picture

B Class Plans

Workshop Drawings of the B Class Locomotive

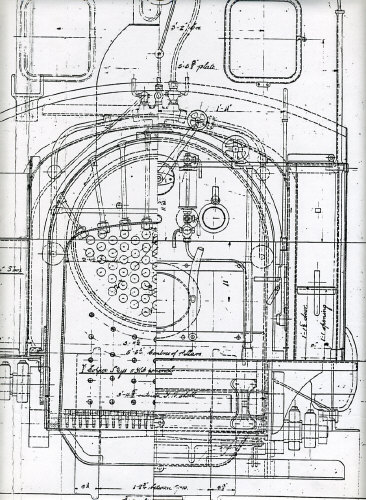

Drawings of the B class, showing sectional detail in front, side, rear and plan perspective, major dimensions are shown.
Produced by the B Loco.Co.Ltd, Glasgow

Size approx. 1250mm x 750mm
Supplied folded flat to about A4
Post and Packing, UK; £0.85, EU £1.51, Int'l £2.13

MAP01
Larger picture

Darjeeling Himalayan Railway

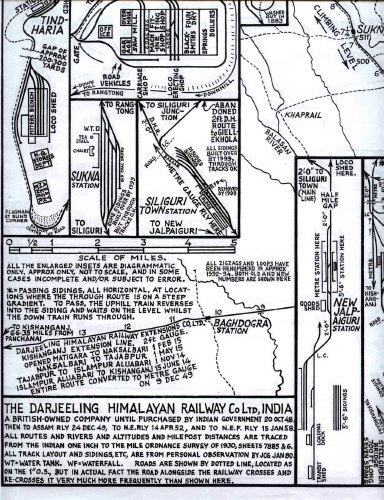

Line drawing of the Darjeeling Himalayan Railway

Details of the history of the line, all routes, rivers, altitudes and milepost distances.
Detailed track layout and sidings (the line from NJP to Siliguri shows the old Metre Gauge track layout, not the new Broad Gauge layout)

Size 750mm x 450mm. Will be supplied folded flat to about A4
Post and Packing UK; £0.85, EU; £1.25, Rest of the World; £1.90

MAP02
Larger picture

Nilgiri Mountain Railway

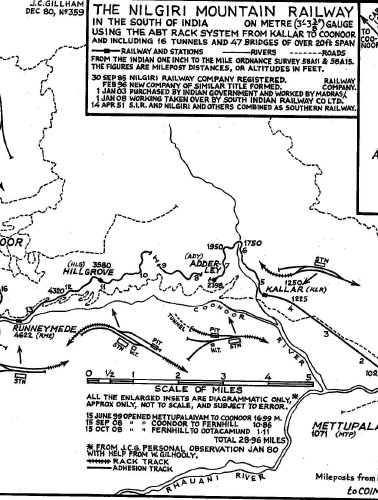

Line drawing of the Nilgiri Mountain Railway

Details of the history of the line, route, rivers, bridges & tunnels.
Details of station layout and sidings, mileposts and spot height altitudes.

Size 500 x 320mm. Will be supplied folded flat to about A4
Post and Packing UK; £0.85, EU; £1.25, Rest of the World; £1.90

MAP03
Larger picture

Matheran Hill Railway

Line drawing of the Matheran Hill Light Railway

Details of the history of the line, route, rivers, altitudes and milepost distances.
Detailed track layout and sidings.

Size 295 x 200mm. Will be supplied folded flat to about A4
Post and Packing UK; £0.85, EU; £1.25, Rest of the World; £1.90

MAP04
Larger picture

Set of 3 Maps

Set of all three maps shown above, save on P & P !!

One copy of each of Darjeeling, Matheran and Nilgiri Railways
Will be supplied folded flat to about A4
Post and Packing UK; £0.85, EU; £1.25, Rest of the World; £1.90

TOPO DHR

DHR Map

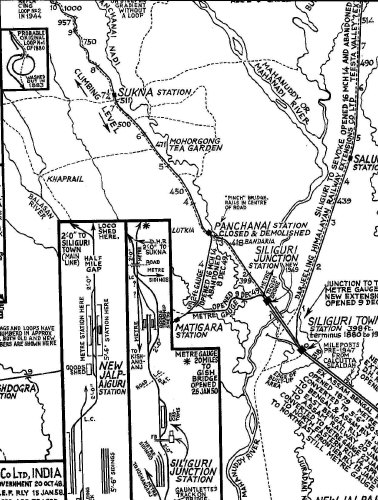

Topographical Map of the Whole DHR
DHR Whole Line Topographical Map
Size 119 x 84 cm supplied folded concertina style to A4 size
Sale circa 2.1 cm = 1 km approx 1:48,000

Post and packing, UK £2.00, EU £3.25, ROW £6.25

TOPO DARJ

Darjeeling Map

Topographical map of the Darjeeling Area
Darjeeling Area Topographical map
Size: 119 x 84 cm supplied folded concertina style to A4 size
Scale circa 17.5 cm = 1 km, approx 1;5,500

Post and packing, UK £2.00, EU £3.25, ROW £6.25
